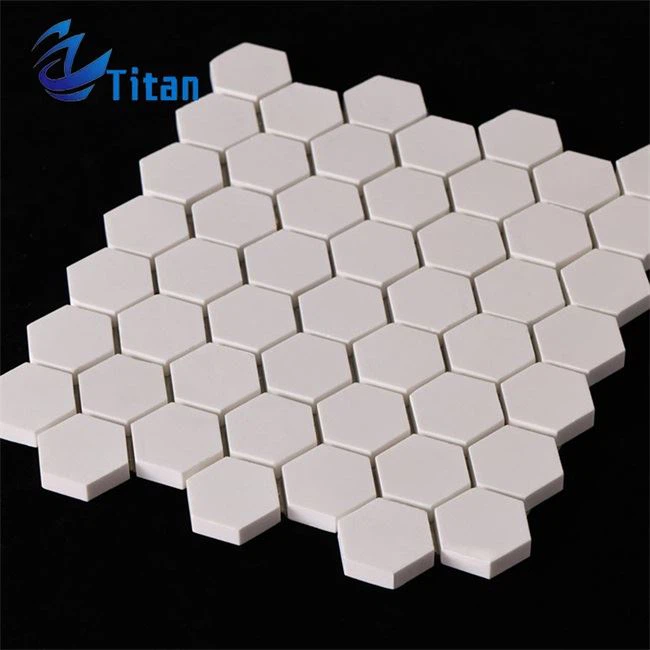

Alumina Ceramic Vuas
Khoom siv: alumina ceramic
Khoom xim: dawb
Daim ntawv pov thawj: ISO9001
Customized: muaj
Khoom ntim: thawv / raws li xav tau
Al2O3 92% 95%
Bending strength(MPa) >=220 250 300 400 800
Compressive strength(MPa) >=1050 1300 1600 2000
Fracture toughness (MPam1/2) >=3.7 3.8 4.0 4.5 7
Rockwell hardness (HRA) >=82 85 88 90
Lossis loj (cm3)<=0.25 0.2 0.15 0.05 0.02
Bulk density(g/cm3) >=3.6 3.65 3.7 4.1 5.9
Khoom taw qhia
Raws li cov duab, peb muaj cov duab plaub, cov cib trapezoid thiab cov cib tshwj xeeb; Raws li lub thickness, muaj xya hom thickness: 40mm, 50mm, 60mm, 70mm, 80mm, 90mm thiab 100mm.
High aluminium ceramic vuas nrog nws tus kheej superior corrosion kuj thiab hnav tsis kam, feem ntau yog siv nyob rau hauv ntau yam kev lag luam lag luam, hauv ob sab phlu tuaj yeem muab tso rau hauv lub raj xa dej, kom txo tau qhov hnav ntawm cov kav dej, tuaj yeem siv rau hauv cov tshuab thiab khoom siv, los tiv thaiv corrosion ntawm cov ntaub ntawv.Nws tuaj yeem nqa tau nyiaj ntau dua rau kev lag luam, txuag nqi ntau lawm.
High alumina ceramic hnav pobzeb yog ib yam ntawm cov khoom siv tiv thaiv tshiab, tom qab kev teeb tsa ntawm cov pobzeb tuaj yeem txo qhov cuam tshuam ntawm cov txheej txheem tsim khoom ntawm cov khoom siv, muab kev ua si tag nrho rau kev siv cov khoom siv, ncua sijhawm ntawm cov khoom siv. .
Daim ntawv thov khoom
Yog hais tias aluminium oxide hauv ob sab phlu cib siv los ua cov hnav-tiv taus hauv ob sab phlu ntawm lub pob zeb, rau ntau hom thiab lub hom phiaj ntawm lub pob zeb, muaj qhov sib txawv ntawm cov txheej txheem ntawm cov txheej txheem, qhov loj, qhov ntau, thov sab laj tus kws tshaj lij kev lag luam. bomai tuam txhab los muab kev pabcuam zoo meej rau koj.Yuav kom ua kom muaj kev sib tsoo ntawm koj lub pob zeb, nws raug nquahu kom koj kuj phim cov hnav-resistant alumina pob raws li qhov sib tsoo nruab nrab los muab kev daws teeb meem zoo dua.
Chemical Composition thiab Physical Properties
| Series | BM92 ua | BMG 95 | BME 95 | BMZTA | BMZR |
| AL2O3 (%) | 92±0.5 | 95±0.5 | 95±0.5 | Ntau dua lossis sib npaug li 75 | - |
| ZrO2(%) | - | - | - | Ntau dua lossis sib npaug li 21 | 94.8±0.5 |
|
Khoov zog (Mpa) |
Ntau tshaj los yog sib npaug rau 220 | Ntau dua lossis sib npaug li 250 | Ntau dua lossis sib npaug li 300 | Ntau dua lossis sib npaug li 400 | Ntau tshaj los yog sib npaug rau 800 |
| Compressive zog (Mpa) | Ntau dua lossis sib npaug rau 1050 | Ntau dua lossis sib npaug rau 1300 | Ntau tshaj los yog sib npaug rau 1600 | Ntau dua lossis sib npaug li 2000 | - |
|
Fracture toughness (MPam 1/2) |
Ntau dua lossis sib npaug rau 3.70 | Ntau dua lossis sib npaug rau 3.80 | Ntau dua lossis sib npaug rau 4.0 | Ntau dua lossis sib npaug rau 4.5 | Ntau dua lossis sib npaug 7 |
|
Rockwell hardness (HRA) |
Ntau dua lossis sib npaug li 82 | Ntau dua lossis sib npaug li 85 | Ntau dua lossis sib npaug li 88 | Ntau dua lossis sib npaug li 90 | Ntau dua lossis sib npaug li 88 |
| Hnav ntim (cm3) | Tsawg dua lossis sib npaug rau 0.25 | Tsawg dua lossis sib npaug rau 0.2 | Tsawg dua lossis sib npaug rau 0.15 | Tsawg dua lossis sib npaug rau 0.05 | Tsawg dua lossis sib npaug rau 0.02 |
| Qhov ceev (g / cm3) | Ntau dua lossis sib npaug rau 3.6 | Ntau dua lossis sib npaug rau 3.65 | Ntau dua lossis sib npaug rau 3.7 | Ntau dua lossis sib npaug rau 4.1 | Ntau dua lossis sib npaug rau 5.9 |
Specification Muaj
| Hom | Ntev (mm) | Dav (mm) | Qhov siab (mm) |
| Cov nplais pobzeb | 50~150 | 25~100 | 6~50 |
| Weldable pobzeb | 50~150 | 30~100 | 10~50 |
| Trapezoidal pobzeb | 50~150 | 20~100 | 8~50 |
Duab
Peb rooj plaub
Peb cov vuas ceramic
Cov txheej txheem ntau lawm
