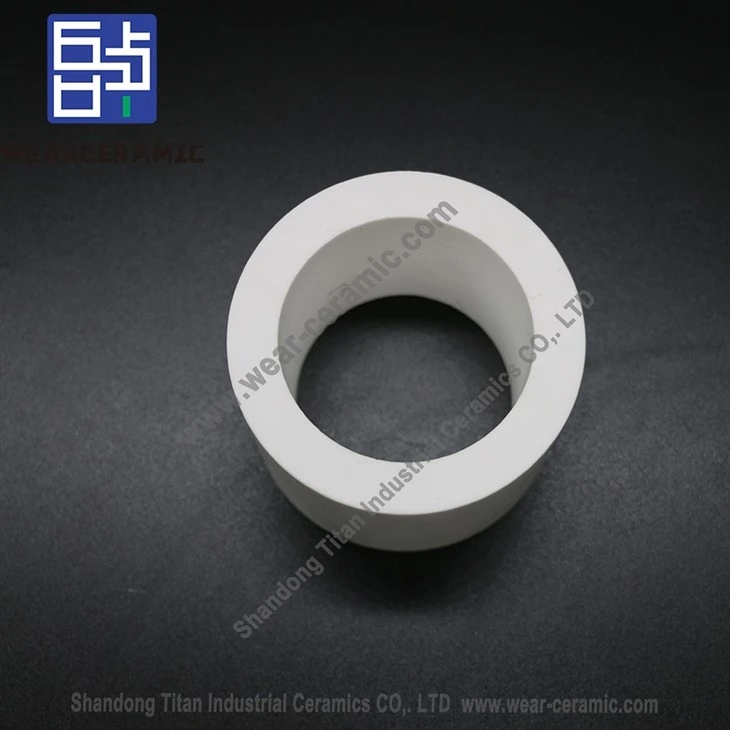

High-temperature Resistant Alumina Ceramic Pipe
Khoom siv: Alumina Ceramic
AL2O3 Cov ntsiab lus (%): 92/95
Khoom Xim: Dawb
Qhov ntom ntom (g / cm3): Ntau dua lossis sib npaug rau 3.6 / Ntau dua lossis sib npaug rau 3.7
Hardness (Mohs): 9
Khoom Taw Qhia
High-temperature resistant alumina ceramic yeeb nkab yog ib hom tshwj xeeb ceramic raj ua los ntawm cov khoom siv alumina.Nws muaj cov yam ntxwv ntawm kev ua haujlwm siab, siab hnav tsis kam, corrosion kuj thiab kub tsis kam, uas tuaj yeem tiv thaiv cov kav dej los ntawm kev hnav thiab txuas ntxiv kev pabcuam. lub neej.
Yam ntxwv
1. High hnav tsis kam: Kub-kub resistant alumina ceramic yeeb nkab muaj siab hardness, tuaj yeem tiv taus hnyav hnyav thiab cuam tshuam, thiab ua tau zoo rau kev pab cuam lub neej ntawm cov khoom siv.
2. Corrosion kuj: Cov khoom siv high-purity alumina xaiv tau zoo heev acid thiab alkali tsis kam thiab corrosion kuj.
3. Kev kub siab ua haujlwm: Kub-kub resistant alumina ceramic yeeb nkab muaj kev ruaj ntseg zoo nyob rau hauv qhov kub thiab txias ib puag ncig thiab tuaj yeem khiav mus ntev yam tsis muaj cua sov puas.
4. Kev cuam tshuam tsis zoo: Thaum raug kev kub ceev, kev kub siab resistant alumina ceramic yeeb nkab tuaj yeem tiv taus qhov cuam tshuam yam tsis muaj kev tawg.
5. Kev siv ntau yam: Kub-kub resistant alumina ceramic yeeb nkab yog tsim rau hnav qhov chaw ntawm ntau yam kav dej, xws li roj av, tshuaj, hluav taws xob, cement thiab lwm yam lag luam.
Daim ntawv thov
1. Metallurgy, mining kev lag luam: High-temperature resistant alumina ceramic yeeb nkab yuav tau lug siv nyob rau hauv mining pipeline, sib tsoo tshuab thiab lwm yam hnav qhov chaw.
2. Petroleum thiab tshuaj lom neeg kev lag luam: High-temperature resistant alumina ceramic kav yog siv nyob rau hauv catalytic converters, reactors, cua sov rauv thiab lwm yam high-temperature kav thiab cov khoom siv coj qhov chaw.
3. Fais fab, cement kev lag luam: High-temperature resistant alumina ceramic yeeb nkab yuav siv tau nyob rau hauv thee-fired boilers, ya tshauv tsheb thauj mus los, cua kub kav, cement kilns thiab lwm yam khoom siv.
4. Lwm cov kev lag luam: Kub-kub resistant alumina ceramic kav kuj tuaj yeem siv rau hauv kev tsim tshuab, iav thiab lwm yam kev hnav qhov chaw.
Specification
|
Series |
BM 92 H |
BMG 95 H |
BME 95 H |
|
AL2O3 (%) |
92±0.5 |
95±0.5 |
95±0.5 |
|
Qhov ceev (g / cm3) |
Ntau dua lossis sib npaug rau 3.6 |
Ntau dua lossis sib npaug rau 3.65 |
Ntau dua lossis sib npaug rau 3.7 |
|
Compressive zog (MPa) |
Ntau dua lossis sib npaug rau 1050 |
Ntau dua lossis sib npaug rau 1300 |
Ntau tshaj los yog sib npaug rau 1600 |
|
Bending zog (MPa) |
Ntau tshaj los yog sib npaug rau 220 |
Ntau dua lossis sib npaug li 250 |
Ntau dua lossis sib npaug li 300 |
|
Fracture toughness (MPam 1/2) |
Ntau dua lossis sib npaug rau 3.70 |
Ntau dua lossis sib npaug rau 3.80 |
Ntau dua lossis sib npaug rau 4.0 |
|
Rockwell hardness (HRA) |
Ntau dua lossis sib npaug li 82 |
Ntau dua lossis sib npaug li 85 |
Ntau dua lossis sib npaug li 88 |
|
Mohs hardness |
9 |
9 |
9 |
|
Sab nraud |
Sab hauv Dia |
Thickness |
|
φ25 |
φ10 |
φ7.5 |
|
φ30 |
φ15 |
φ7.5 |
|
φ40 |
φ20 |
φ10 |
|
φ50 |
φ37 |
φ6.5 |
|
φ65 |
φ52 |
φ6.5 |
|
φ80 |
φ67 |
φ6.5 |
|
φ100 |
φ84 |
φ8 |
|
φ125 |
φ109 |
φ8 |
|
φ150 |
φ134 |
φ8 |
|
φ200 |
φ184 |
φ8 |
|
φ250 |
φ230 |
φ10 |
