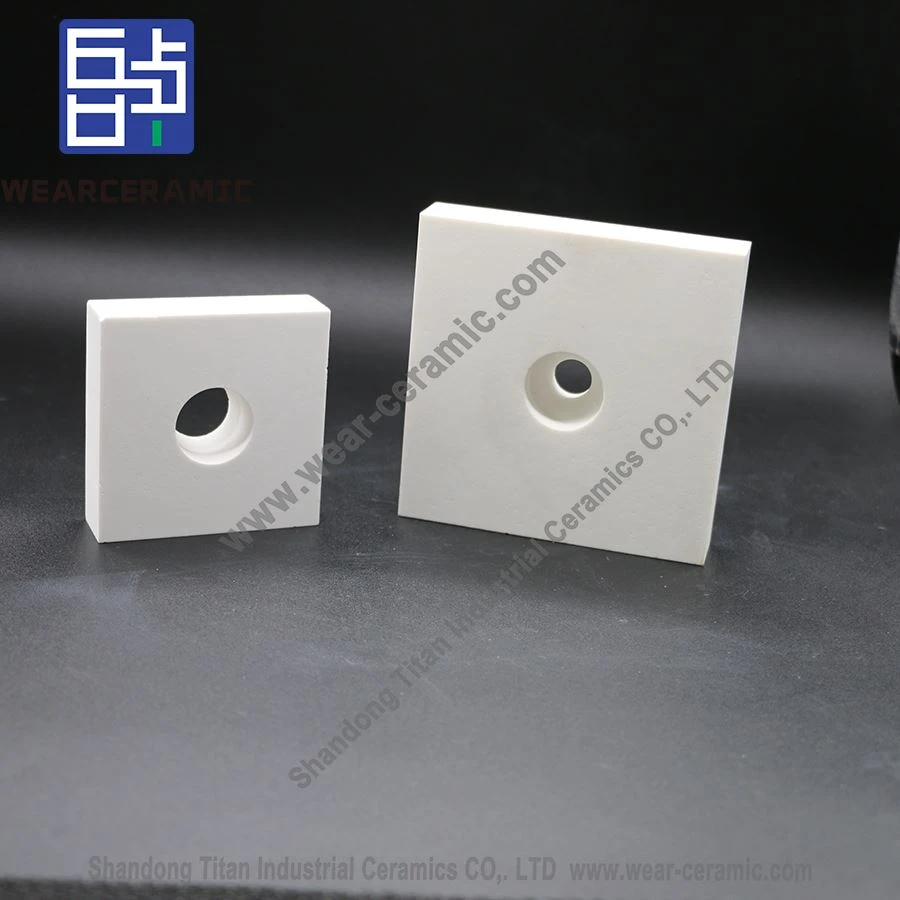

Weldable Ceramic Phaj
Khoom siv: Alumina Ceramic
AL2O3 Cov ntsiab lus (%): 92/95
Khoom xim: Dawb
Qhov ntom ntom (g / cm3): Ntau dua lossis sib npaug rau 3.6 / Ntau dua lossis sib npaug rau 3.7
Hardness (Mohs): 9
Kev tsim khoom
Hnav-resistant ceramic hauv ob sab phlu yog dav siv nyob rau hauv cov cement, mining, lub zog tsim thiab lwm yam lag luam vim lawv zoo heev hnav tsis kam. Txawm li cas los xij, cov tsoos ceramic linings feem ntau raug kev txom nyem los ntawm cov teeb meem xws li cov kab nrib pleb thiab chips, thiab lawv cov txiaj ntsig tau raug txwv tshwj xeeb hauv cov xwm txheej hnyav.
Yuav kom daws tau cov teeb meem no, tshiab weldable ceramic phaj tau tsim. Nws yog ib qho hnav-resistant ceramic uas tuaj yeem welded. Cov khoom siv hloov pauv no tuaj yeem txuas ncaj qha rau cov cuab yeej siv tshuab, muab cov kev daws teeb meem zoo rau cov ntawv thov uas cov khoom siv gasket tsoos tsis txaus.
Yam ntxwv
1. High hnav tsis kam: Weldable ceramic daim hlau muaj kev hnav zoo heev thiab tuaj yeem tswj tau qhov zoo ntawm qhov smoothness thiab durability rau ntau xyoo.
2. Zoo corrosion kuj: Weldable ceramic daim hlau muaj corrosion kuj zoo thiab tuaj yeem tiv taus kev yaig ntawm ntau yam tshuaj daws teeb meem, acids thiab alkali.
3. Zoo heev mechanical zog: Weldable ceramic daim hlau muaj zoo heev mechanical zog thiab av qeeg tsis kam.
Daim ntawv thov
Weldable ceramic daim hlau tuaj yeem siv rau hauv thaj chaw ntawm chemistry thiab kev tiv thaiv ib puag ncig. Hauv kev tsim tshuaj lom neeg thiab kev tiv thaiv ib puag ncig, alumina orifice phaj liner ua lub luag haujlwm tiv thaiv kom tsis txhob muaj cov khoom siv los ntawm kev corroded thiab hnav los ntawm cov tshuaj lom neeg thiab cov pa phem.
Tsis tas li ntawd, nws tseem tuaj yeem siv rau hauv kev ua liaj ua teb thiab zaub mov. Thaum lub sij hawm tsim khoom thiab ua, alumina orifice phaj liner tiv thaiv kev hnav thiab yaig ntawm cov cuab yeej siv tshuab thiab ua kom cov khoom lag luam ib txwm muaj hauv kev ua liaj ua teb thiab zaub mov.
Specification
| Series | BM92 ua | BMG 95 | BME 95 | BMZTA | BMZR |
| AL2O3 (%) | 92±0.5 | 95±0.5 | 95±0.5 | Ntau dua lossis sib npaug li 75 | - |
| ZrO2(%) | - | - | - | Ntau dua lossis sib npaug li 21 | 94.8±0.5 |
|
Khoov zog (Mpa) |
Ntau dua lossis sib npaug li 220 | Ntau dua lossis sib npaug li 250 | Ntau dua lossis sib npaug li 300 | Ntau dua lossis sib npaug li 400 | Ntau tshaj los yog sib npaug rau 800 |
|
Compressive zog (Mpa) |
Ntau dua lossis sib npaug rau 1050 | Ntau tshaj los yog sib npaug rau 1300 | Ntau tshaj los yog sib npaug rau 1600 | Ntau dua lossis sib npaug li 2000 | - |
|
Fracture toughness (MPam 1/2) |
Ntau dua lossis sib npaug rau 3.70 | Ntau dua lossis sib npaug rau 3.80 | Ntau dua lossis sib npaug rau 4.0 | Ntau dua lossis sib npaug rau 4.5 | Ntau dua lossis sib npaug 7 |
|
Rockwell hardness (HRA) |
Ntau dua lossis sib npaug li 82 | Ntau dua lossis sib npaug li 85 | Ntau dua lossis sib npaug li 88 | Ntau dua lossis sib npaug li 90 | Ntau dua lossis sib npaug li 88 |
| Hnav ntim (cm3) | Tsawg dua lossis sib npaug rau 0.25 | Tsawg dua lossis sib npaug rau 0.2 | Tsawg dua lossis sib npaug rau 0.15 | Tsawg dua lossis sib npaug rau 0.05 | Tsawg dua lossis sib npaug rau 0.02 |
| Qhov ceev (g / cm3) | Ntau dua lossis sib npaug rau 3.6 | Ntau dua lossis sib npaug rau 3.65 | Ntau dua lossis sib npaug rau 3.7 | Ntau dua lossis sib npaug rau 4.1 | Ntau dua lossis sib npaug rau 5.9 |
| Loj | Ntev | Dav | Qhov siab |
| Alumina Ceramic Pobzeb (Qhov) | 50~150 | 30~100 | 10~50 |
Duab
Txog Peb
FAQ
Kuv tuaj yeem tau txais cov lus hais sai li cas?
Thov ua siab zoo xa peb cov lus qhia ntxiv txog koj cov kev xav tau.
Koj puas tuaj yeem muab cov qauv dawb?
Tseeb, cov qauv pub dawb rau koj daim tshev.
Koj lub sijhawm xa khoom ntev npaum li cas?
Nws nyob ntawm qhov ntau. Feem ntau 5-10hnub yog tias cov khoom muaj nyob hauv Tshuag, lossis 10-30 hnub yog tias tsis muaj Tshuag.
Nws puas tuaj yeem kho tau?
Yog.Thov xa cov ntsiab lus.
Koj txoj kev ntim khoom yog dab tsi?
Peb muaj lawv nyob rau hauv hnab, nruas thiab ntoo rooj.
Cim npe nrov: Weldable ceramic phaj, manufacturers, lwm tus neeg, Hoobkas, nqe, ua nyob rau hauv Suav teb
