Pobzeb Rau Cyclone
Khoom siv: Alumina Ceramic
AL2O3 Cov ntsiab lus (%): 92/95
Khoom Xim: Dawb
Qhov ntom ntom (g / cm3): Ntau dua lossis sib npaug rau 3.6 / Ntau dua lossis sib npaug rau 3.7
Hardness (Mohs): 9
Khoom Taw Qhia

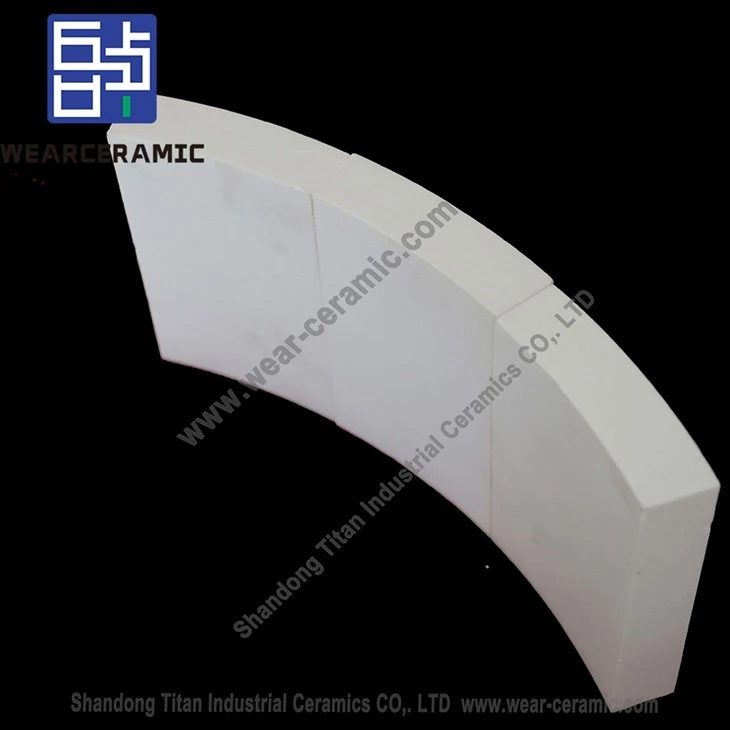

Cov vuas rau cua daj cua dub yog ib qho tseem ceeb ntawm cov cua daj cua dub, pab ua kom muaj zog thiab kav ntev. Ceramic linings yog dav siv nyob rau hauv ntau yam lag luam. Nws tuaj yeem xaiv ntau hom ceramics raws li kev siv tshwj xeeb. Los ntawm kev nkag siab txog qhov zoo thiab kev ua haujlwm ntawm ceramic gaskets, cov tuam txhab tuaj yeem xaiv cov khoom siv gasket uas tsim nyog raws li lawv cov kev xav tau los xyuas kom meej qhov ua tau zoo thiab ua haujlwm ntev ntawm cov khoom siv.
Cov khoom
Cov vuas rau cyclon muaj ntau yam zoo dua lwm yam khoom siv gasket xws li roj hmab thiab hlau. Cov yam ntxwv tseem ceeb ntawm ceramic liner muaj xws li: siab hardness, zoo heev hnav tsis kam, tshuaj tsis kam, thiab thermal expansion coefficient tsawg. Nyob rau tib lub sijhawm, nws kuj muaj qhov siab melting point, siab compressibility, siab zog thiab zoo heev hluav taws xob rwb thaiv tsev.
Daim ntawv thov
Cov vuas rau cua daj cua dub yog dav siv hauv cyclones hauv ntau yam lag luam xws li mining, hluav taws xob tsim, cement, tshuaj, thiab ua zaub mov. Cov pobzeb rau cua daj cua dub tuaj yeem tiv taus qhov kub thiab txias, kev kub ntxhov thiab abrasive tej yam kev mob, ua rau lawv zoo tshaj plaws haum rau kev siv nyob rau hauv cyclones cais cov khoom ntawm cov pa ntws los yog kua. Nws kuj yog siv rau hauv lwm yam khoom siv xws li chutes, hoppers thiab conveyor systems.
Specification
| Series | BM92 ua | BMG 95 | BME 95 | BMZTA | BMZR |
| AL2O3 (%) | 92±0.5 | 95±0.5 | 95±0.5 | Ntau dua lossis sib npaug li 75 | - |
| ZrO2(%) | - | - | - | Ntau dua lossis sib npaug li 21 | 94.8±0.5 |
|
Khoov zog (Mpa) |
Ntau tshaj los yog sib npaug rau 220 | Ntau dua lossis sib npaug li 250 | Ntau dua lossis sib npaug li 300 | Ntau dua lossis sib npaug li 400 | Ntau tshaj los yog sib npaug rau 800 |
|
Compressive zog (Mpa) |
Ntau dua lossis sib npaug rau 1050 | Ntau tshaj los yog sib npaug rau 1300 | Ntau tshaj los yog sib npaug rau 1600 | Ntau dua lossis sib npaug li 2000 | - |
|
Fracture toughness (MPam 1/2) |
Ntau dua lossis sib npaug rau 3.70 | Ntau dua lossis sib npaug rau 3.80 | Ntau dua lossis sib npaug rau 4.0 | Ntau dua lossis sib npaug rau 4.5 | Ntau dua lossis sib npaug 7 |
|
Rockwell hardness (HRA) |
Ntau dua lossis sib npaug li 82 | Ntau dua lossis sib npaug li 85 | Ntau dua lossis sib npaug li 88 | Ntau dua lossis sib npaug li 90 | Ntau dua lossis sib npaug li 88 |
| Hnav ntim (cm3) | Tsawg dua lossis sib npaug rau 0.25 | Tsawg dua lossis sib npaug rau 0.2 | Tsawg dua lossis sib npaug rau 0.15 | Tsawg dua lossis sib npaug rau 0.05 | Tsawg dua lossis sib npaug rau 0.02 |
| Qhov ceev (g / cm3) | Ntau dua lossis sib npaug rau 3.6 | Ntau dua lossis sib npaug rau 3.65 | Ntau dua lossis sib npaug rau 3.7 | Ntau dua lossis sib npaug rau 4.1 | Ntau dua lossis sib npaug rau 5.9 |
